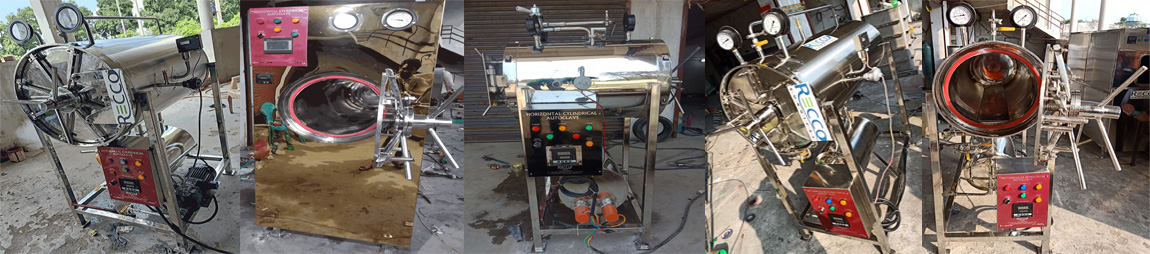

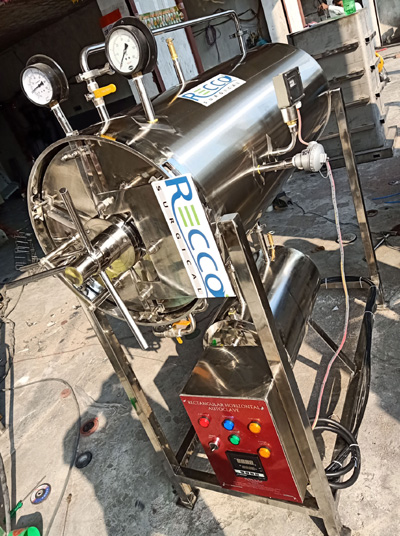

BIO-MEDICAL WASTE TREATMENT CYLINDRICAL/RECTANGULAR HORIZONTAL AUTOCLAVE Model Number: RECCO-BMW01

RECCO SURGICAL, have comprehensive range of horizontal autoclaves for BIO-MEDICAL WASTE TREATMENT. Cylindrical/Rectangular Horizontal autoclave will be front loading and in Horizontal shape with triple layer with self steam generator or boiler. These high pressure front loading autoclaves play important role in BIO-MEDICAL WASTE TREATMENT procedures required in hospitals and in BIO-MEDICAL WASTE TREATMENT plants etc.

RECCO SURGICAL BIO-MEDICAL WASTE TREATMENT autoclave units are made of stainless steel to ensure corrosion resistance surface. Tipple walled construction ensures excellent level of safety. Boiler is fitted separately and connected to the chamber. Water level indicator is also attached to the boiler with automatic low water cut-off.

User can easily set the desired temperature with the help of digital controller/HMI fitted on the front side of the unit. we provide radial locking pressure door with silicon gas kit. we use automatic pressure control switch and user easly can set temperature by Digital Controller. our machine work with pressure between 15-34 PSI.

Our BIO-MEDICAL WASTE TREATMENT autoclaves chamber and boiler are Hydraulic tested on 66 PSI.

FEATURES & BENEFITS:

Cylindrical/Rectangular Horizontal Autoclave
Stainless steel interior and exterior
Triple walled construction
Self-locking safety door – cannot be opened when chamber is under pressure
Standard temperature 121°C to 134°C
Working pressure 15 psi to 34 psi
Silicon jointless rubber door gasket
Automatic pressure control switch
Vacuum breaker
Steam trap & NRV
ISI safety valves
Digital Temperature controller with Timer and alarm (buzzer)
Automatic water level cut-off
Water level Glass to Check Water Level
SS Pressure & Compound gauges
ISI marked flange / immersion heating elements

TECHNICAL SPECIFICATIONS

Model	RECCO-BMW01
Design	Cylindrical/Rectangular Horizontal Type
Construction	Triple Walled
Valve for Jacket to chamber transfer, chamber release and for post vacuum or dry mode	Use Heavy duty multi-port or Valve
Self steam generator system	SS 304 boiler with Heater
Pre-Vacuum or High Vacuum	Yes
Water in Boiler	Distilled/ Normal Water
Heater	Industrial Immersion Type water heater
Working Pressure	Variable 15 to 34 PSI
Working Temperature	121°C (up graded up to 135°C)
Internal Chamber	Corrosion Resistant Stainless Steel SS 316
External Chamber	Corrosion Resistant 304 Grade Stainless Steel
Finishing	Mirror finished inner and external surface SS 304/316L
All Piping	SS 316L
Door	Single or Double Doors SS 304
Insulation	Glass wool Fiber 100mm
Sterilization Period	25 to 30 Minutes
Steam Exhaust	5 to 7 Minutes
Air removed during the vacuum cycle	Decontaminated by means of a HEPA filter (Class H13 or higher)
Dry	5-10 Minutes
Boiler	Made of SS 304 sheet water inlet & outlet valves Water level glass window Boiler safety valve With ISI marked water immersion type industrial heating elements.
Chamber condensate line	Fitted with steam trap & NRV valve
Hydraulic tested	on 66 psi
Sensor	PT100
Temperature	Digital Display
Temperature indication	±1 % accuracy
Jacket Pressure	Use Pressure Gauge
Chamber pressure(for Positive Pressure)	Use Compound Gauge(for Positive & Negative Pressure)
Pressure Indication	±1.6 % accuracy
Safety Valve	For excess pressure inside Chamber, jacket and steam generator.
Mechanical Time w/ Alarm	Regulates sterilization time and activates buzzer when sterilization cycle completes
Standard Accessories	SS304 Sterilizing tray x 1pc Water level glass tube x 2pcs Heating element x 1pc Silicone door seal x 1pc
Optional Accessories	PLC operation Vacuum drying Printer Auto add water Door interlock Automatic Pressure control switch water cut-off Temperature indicator Caster wheels
Power Supply	220 Volts / 440 Volts(Three Phase)

Size of Cylindrical/Rectangular Horizontal Autoclave

INNER CHAMBER IN MM	INNER CHAMBER IN INCHES	CAPACITY IN LTR	LOAD(KW)
400 x 600 MM	16" X 24"	78	6-8
400 X 900 MM	16" x 36"	120	8-10
400 x 1200 mm	16" x 48"	165	9
500 x 600 MM	20" X 24"	120	8
500 X 900 MM	20" x 36"	165	9
500 x 1200 mm	20" x 48"	250	12
550 x 1300 mm	22" x 52"	310	18

INNER CHAMBER IN MM	INNER CHAMBER IN INCHES	CAPACITY IN LTR	LOAD(KW)
450 x 450 x 900 MM	18" x 18" x 36" (1.5 x 1.5 x 3FT)	180	10KW
450 x 600 x 900 MM	18" x 24" x 36" (1.5 x 2 x 3FT)	250	12KW
600 x 600 x 900 MM	24" x 24" x 36" (2 x 2 x 3FT)	320	18KW
600 x 600 x 1200 MM	24" x 24" x 48" (2 x 2 x 4FT)	450	18KW
600 x 900 x 1500 MM	24" x 36" x 60" (2 x 3 x 5FT)	810	24-27KW
Customised Size................
