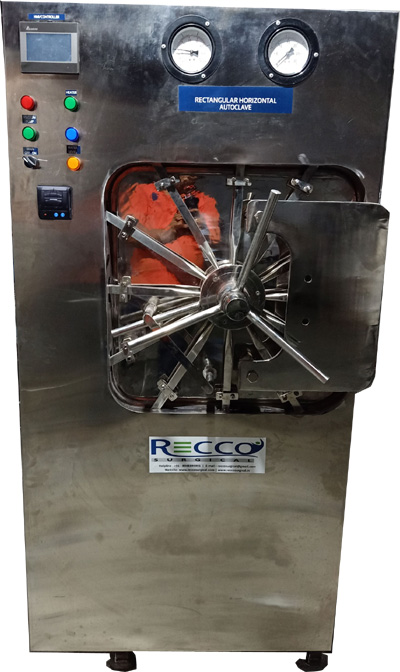

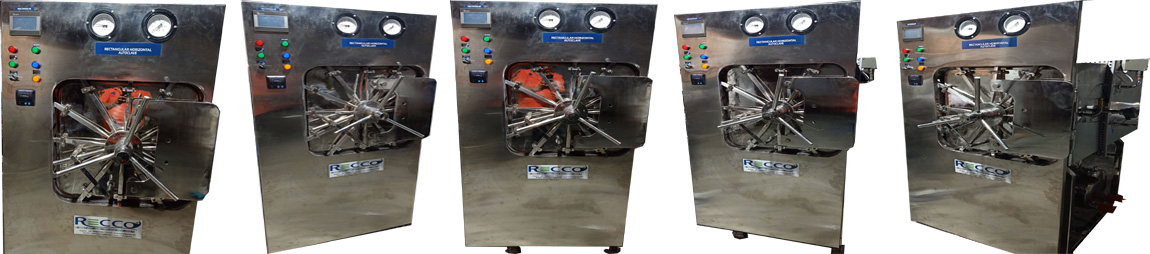

Fully Automatic Rectangular Horizontal Autoclave Model Number: RECC-003B

RECCO SURGICAL, have comprehensive range of Fully automatic Rectangular horizontal autoclaves. Fully automatic Rectangular horizontal autoclave will be front loading, with PLC/HMI Based and in Horizontal shape with triple layer with boiler. These high pressure front loading autoclaves play important role in sterilization procedures required in hospitals, pharmaceutical companies, biopharma and microbiology laboratories etc.
This autoclave will be used in sterilization of wrapped instruments, unwrapped instruments, glassware, liquids, metal instruments, culture medium and laboratory purpose.

RECCO SURGICAL horizontal autoclave units are made of stainless steel to ensure corrosion resistance surface. Tipple walled construction ensures excellent level of safety. Boiler is fitted separately and connected to the chamber. Water level indicator is also attached to the boiler with automatic low water cut-off.

User can easily set the desired temperature with the help of digital controller fitted on the front side of the unit. we provide radial locking pressure door with silicon gas kit. we use automatic pressure control switch and user easly can set temperature by Digital Controller. our machine work with pressure between 15-34 PSI.

Our Horizontal autoclaves chamber and boiler are Hydraulic tested on 66 PSI.

FEATURES & BENEFITS:

Rectangular Horizontal Autoclave
Stainless steel interior and exterior
Triple walled construction
Standard working temperature 115°C to 138°C
Working pressure 15 psi to 34 psi
Silicon jointless rubber door gasket
Automatic pressure control switch
Vacuum breaker
Steam trap & NRV
ISI safety valves
Digital Temperature controller with Timer and alarm (buzzer)
Automatic water level cut-off
Water level Glass to Check Water Level
SS Pressure & Compound gauges
ISI marked flange / immersion heating elements

TECHNICAL SPECIFICATIONS

Model	RECC-003BH
Design	Rectangular Horizontal Type
Construction	Triple Walled
Automation Hardware	PLC/HMI
Display	7”(Inches) touch screen multi-colour. The information shows in display like cycle stage, chamber temperature, chamber pressure, jacket pressure, along with the information about failures and interrupts.
Printer	Thermal printer with last 100 Cycle storage capacity.
Dry Chamber	Use Vacuum pump for chamber dry Pre Vacuum Post Vacuum Chamber 100%
Working Pressure	Variable 15 to 34 PSI
For Over Pressure	Use TraFag Pressure Switch
Working Temperature	115°C to 138°C
Inner Chamber	Corrosion Resistant Stainless Steel SS 316L
Outer Chamber	Corrosion Resistant 304 Grade Stainless Steel
Finishing	Mirror finished inner and external surface
All Piping and fittings	SS 304
Door	Single or Double Doors SS 304 Hinges/ Sliding
Insulation	Aluminum silicate which is the best insulating material.
Sterilization Period	25 to 30 Minutes
For Water Level	Water Level Indicator
When Water Level Low	Low water level sensor indicate in display WATER LEVEL LOW.
Steam Exhaust	5 to 7 Minutes
Dry	5-10 Minutes
Boiler	Made of SS 304 sheet water inlet & outlet valves Water level glass window Boiler safety valve With ISI marked water immersion type industrial heating elements.
Chamber condensate line	Fitted with steam trap & NRV valve
Hydraulic tested	on 66 psi
Sensor	PT100
Safety Valve	For excess pressure inside jacket and steam generator.
Mechanical Time w/ Alarm	Regulates sterilization time and activates buzzer when sterilization cycle completes
Standard Accessories	SS304 Sterilizing tray x 1pc Water level glass tube x 2pcs Heating element x 1pc Silicone door seal x 1pc
Power Supply	220 Volts / 440 Volts(Three Phase)

Size of Rectangular Horizontal Autoclave

INNER CHAMBER IN MM	INNER CHAMBER IN INCHES	CAPACITY IN LTR	LOAD(KW)
450 x 450 x 900 MM	18" x 18" x 36" (1.5 x 1.5 x 3FT)	180	12KW
450 x 600 x 900 MM	18" x 24" x 36" (1.5 x 2 x 3FT)	250	12KW
600 x 600 x 900 MM	24" x 24" x 36" (2 x 2 x 3FT)	320	18KW
600 x 600 x 1200 MM	24" x 24" x 48" (2 x 2 x 4FT)	430	18KW
600 x 900 x 1500 MM	24" x 36" x 60" (2 x 3 x 5FT)	810	24-27KW
Customised Size................
