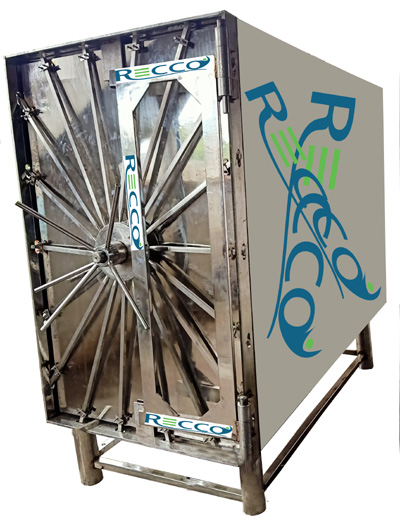

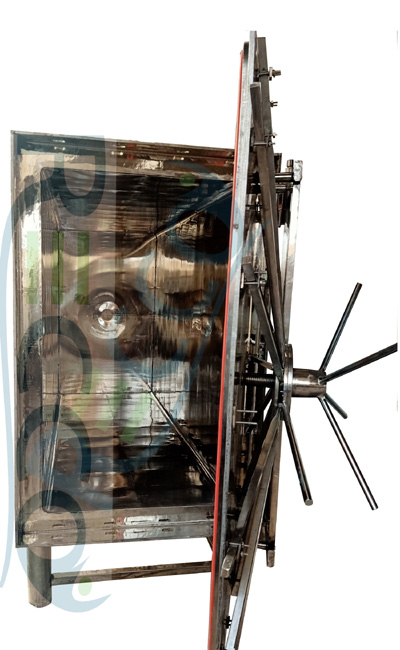

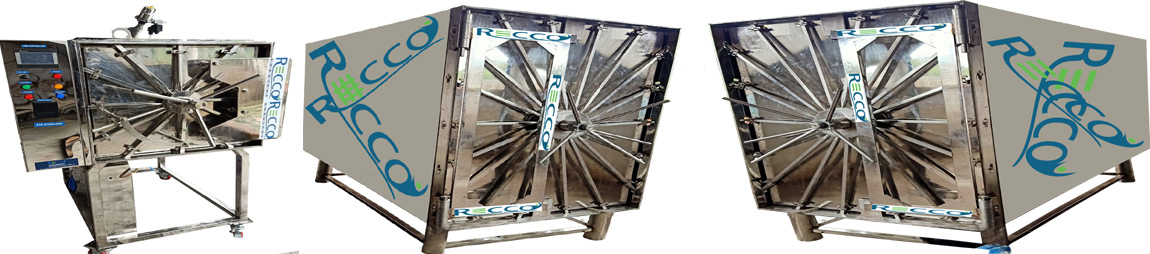

Industrial Ethylene Oxide Gas Sterilizer Model Number: RECC-IETO

RECCO SURGICAL Industrial Ethylene Oxide Gas Sterilizers (Also Known as EO or ETO) are specifically designed to perform sterilization of temperature sensitive products .Our Sterilizercan be used both in Pharmaceutical and Parapharmaceutical industries and even in a wide range of medical and laboratory applications.

MAIN APPLICATIONS

Syringes, Catheters, Cartridges for dialysis

Plastic Articles

Bandages, Sutures

All disposable items used in hospitals

RECCO SURGICAL manufacturing Industrial Ethylene Oxide Gas Sterilizers as per the norms of the international standards and use branded parts and components. Material use in manufacturing only Stainless Steal(JINDAL) Mate and Mirror Finish both. Grade Use Only SS316 and SS304.

Industrial Ethylene Oxide Gas Sterilizers are two Type.

First is manufactured in Triple walled with separate boiler system. Boiler System has used for uniform heat in chamber.Also provide dilution tank for ethylene Oxide.
Second is manufactured in Double walled with Heater. Heater used for uniform heat in chamber.

RECCO Ethylene Oxide Gas Sterilizers Chamber tested under -500PSI Vacuum tested.

FEATURES & BENEFITS:

Fully automatic One touch operated machine
Thermal printer
Inbuilt vacuum pump
Inbuilt Air Compressor
Rectangular chamber
Stainless steel interior and exterior
Standard temperature 35°C to 65°C
Working pressure is -300 to -400 PSI.
Silicon jointless rubber door gasket
Manual door lock
Ethylene Cylinder use for Ethylene Gas.
ISI marked flange / immersion heating elements use in Boiler

TECHNICAL SPECIFICATIONS

Model	RECC-IETO
Design	Rectangular Horizontal Type
Construction	Complete Stainless Steal
Inner Chamber	Made by SS 316
Outer and All Piping	Made by SS 304
Automation Hardware	PLC/HMI
Chamber Operating Pressure	Negative pressure cycle
Chamber Testing pressure	1.0 to 1.5 Kg/cm2
Chamber Operating Temperature	Maximum: 65°C (chamber)
Jacket Testing pressure	3.0 Kg/cm2
Single/Double Door	SS 304
Door Locking	Manual Door Locking system
Gasket	Jointless Silicon Gasket
Finishing	Mirror finished inner and external surface Mate/Mirror.
Insulation	Glass wool Fiber 50mm
Sterilization Period	6-7 Hours
Heating	by Boiler
Temperature Sensor	For accurate measuring and controlling of Temp. in the chamber
Pressure Transmitter	For measuring and controlling the pressure-vacuum that the load is subjected to during removal and charging of Gas.
All Valves for Automation	JANATICS Pneumatic Solenoid valves.
Sensor	PT100
Heater	ESCORT in Boiler
Water Pump	1HP Cromton
Vacuum Pump	Inbuilt
Standard Accessories	SS 304 Loading Basket x 1pc Sealing Machine x 1pcs ETO Paper Roll 20CM x 1pc
Power Supply	220/440 Volts (Three Phase)

SIZE OF ETO STERILIZER

SIZE IN FEET W x H x L	CAPACITY IN LTR	VOLUMETRIC CAPACITY IN CFT	VACUUM PUMP	WATER CIRCULATION PUMP	ELECTRIC HEATERS LOAD
2x2x4	430LTR	15	1HP	0.5HP	4KW
2x2x5	550LTR	19	1HP	0.5HP	4KW
3x3x6	1460LTR	51	1.5HP	0.5HP	6KW
4x4x8	3500LTR	123	2HP	1HP	12KW
5x5x10	6750LTR	238.5	3HP	1HP	12KW to 18KW
6x6x16	15550LTR	549.5	5HP	2HP	18KW to 24KW
