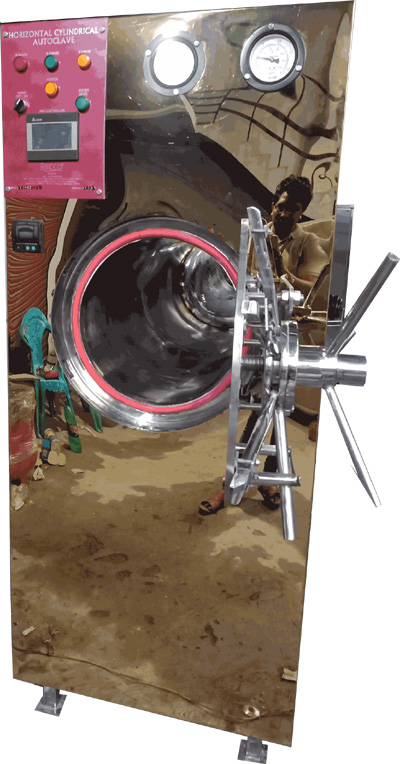

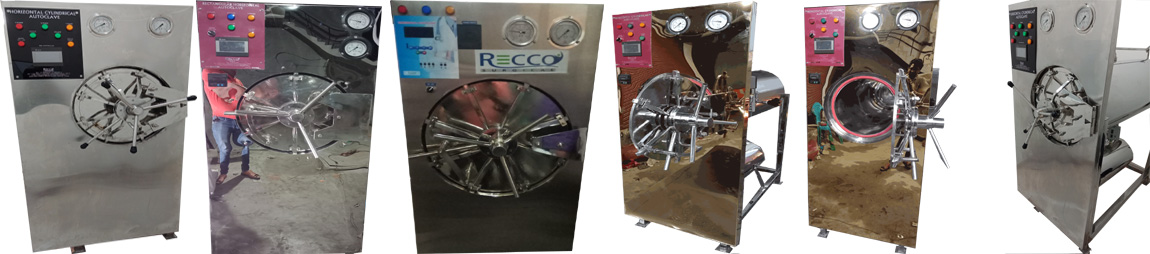

RECCO SURGICAL, have comprehensive range of horizontal
autoclaves. Cylindrical Horizontal autoclave will be front loading and in Horizontal
shape with triple layer with boiler. These high pressure front loading autoclaves
play important role in sterilization procedures required in hospitals, pharmaceutical
companies, biopharma and microbiology laboratories etc.
RECCO SURGICAL Fully automatic horizontal autoclave units are made
of stainless steel to ensure corrosion resistance surface and Pre-Vacuum Healthcare
waste treatment autoclave.Chamber cunstruction according to Pressure
vessel(ASME Vessel Section VIII). Must have ability to operate from manual switches in
case of emergency and maintenance purpose
User can easily set the desired temperature with the help of digital controller
fitted on the front side of the unit. we provide radial locking pressure door with
silicon gas kit. we use automatic pressure control switch and user easly can set
temperature by Digital Controller. our machine work with pressure between 15-34
PSI.
Our Horizontal autoclaves chamber and boiler are Hydraulic
tested on 50 PSI.
FEATURES
& BENEFITS:
-
Cylindrical
Horizontal Autoclave
-
-
Stainless
steel interior and exterior
-
Triple
walled construction
-
Silicon
jointless rubber door gasket
-
Automatic
pressure control switch
-
Vacuum
breaker
-
Steam
trap & NRV
-
ISI safety
valves
-
Digital
Temperature controller with Timer and alarm (buzzer)
-
Automatic
water level cut-off
-
Water
level Glass to Check Water Level
-
SS Pressure
& Compound gauges
-
ISI marked
flange / immersion heating elements
TECHNICAL SPECIFICATIONS
| Model
|
RECC-002A
|
| Design
|
Cylindrical Horizontal Type
|
| Construction
|
Triple Walled
|
| Automation Hardware
|
PLC/HMI
|
| Manual mode operation
|
Provide manual switches in case of emergency and maintenance purpose
|
| Display
|
7”(Inches) touch screen multi-colour. The information shows in display like cycle
stage, chamber temperature, chamber pressure, jacket pressure, along with the information
about failures and interrupts.
|
| Printer
|
Thermal printer with facialty of storage of record and connect pc also.
Charts along with the block diagram of the operation.
It will provide status of components along with the sensor values.
|
| Dry Chamber
|
Use Vacuum pump for chamber dry
Pre
Vacuum
Post
Vacuum
Chamber
100%
|
| Pressure Accuracy and Range
|
Pressure sensor accuracy ±2% or better Range ±1 bar to 3 bar,0.01bar
|
| Operating Pressure
|
2 to 5kg/cm3or Bar
|
| For Over Pressure
|
Use TraFag Pressure Switch
|
| Temperature accuracy and Range
|
Temperature accuracy ±1% or better. Range 50℃ to 150℃:0.1℃
|
| Operating temperature
|
121℃ and 134℃
|
| Inner Chamber
|
Corrosion Resistant Stainless Steel SS 316L thickness>=8mm
|
| Jacket
|
Corrosion Resistant 304 Grade Stainless Steel thickness>=8mm
|
| Insulation cover and base frame
|
Insulation from all 4 side Thickness will be 80mm and the base frame material
will be Stainless Steel 304L
|
| All Piping and fittings
|
SS 304
|
| Door
|
Radial locking Single Doors SS 316L thickness>=20mm
|
| Insulation
|
Aluminum silicate which is the best insulating material.
|
| Sterilization Period
|
25 to 30 Minutes
|
| Vacuum pump
|
Electric water ring vacuum pump
|
| Compressor
|
Pressure up to 8 bar and the valves must be pneumatically controlled
|
| HEPA FILTER
|
Decontamination of Air(in pre or post vacuum)
|
| Emergency Button
|
Emergency shut-off machine if any fault come in machine.
|
| When Water Level Low
|
Low water level sensor indicate in display WATER LEVEL LOW.
|
| Steam Exhaust
|
5 to 7 Minutes
|
| Dry
|
5-10 Minutes
|
| Boiler
|
Made
of SS 304 sheet capacity will be 100ltr
water
inlet & outlet valves
Water
level glass window
Boiler
safety valve
With
ISI marked water immersion type industrial heating elements.
|
| Chamber condensate line
|
Fitted with steam trap & NRV valve
|
| Hydraulic tested
|
on 66 psi
|
| Sensor
|
PT100
|
| Safety Valve
|
For excess pressure inside jacket and steam generator.
|
| Mechanical Time w/ Alarm
|
Regulates sterilization time and activates buzzer when Door Lock, Low water level,
Power error, Low and High Temperature and Pressure, Cycle abort, Cycle Complete, Vacuum Pump error
,Sensor values out of range error.
|
| Standard Accessories
|
Door Seal/gasket 2 Setc
Heating elements 2 Set
HEPA Filter 5 Set
Door Lock sensor 1 Set
Level glass tube 1 Set
Level Sensor 1 Set
Solenoid Valves 1 Set
|
| Power Supply
|
220 Volts / 440 Volts(Three Phase)
|
Size of Cylindrical Horizontal Autoclave
INNER CHAMBER IN MM
|
INNER CHAMBER IN INCHES
|
CAPACITY IN LTR
|
LOAD(KW)
|
| 400 x 600 MM
|
16" X 24"
|
78
|
6-8
|
| 400 X 900 MM
|
16" x 36"
|
120
|
8-10
|
| 400 x 1200 mm
|
16" x 48"
|
165
|
10-12
|
| 500 x 600 MM
|
20" X 24"
|
120
|
8
|
| 500 X 900 MM
|
20" x 36"
|
180
|
10
|
| 500 x 1200 mm
|
20" x 48"
|
250
|
12
|
| 625 x 1500 mm
|
25" x 60"
|
460
|
18
|
