RECCO SURGICAL

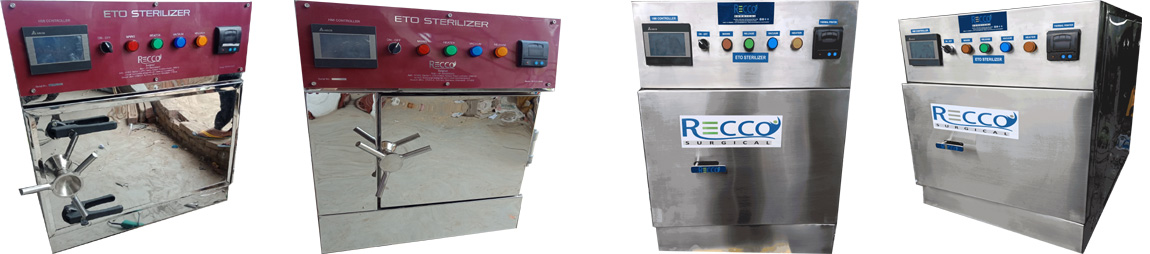

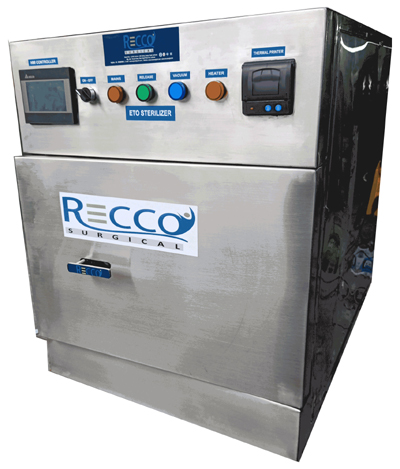

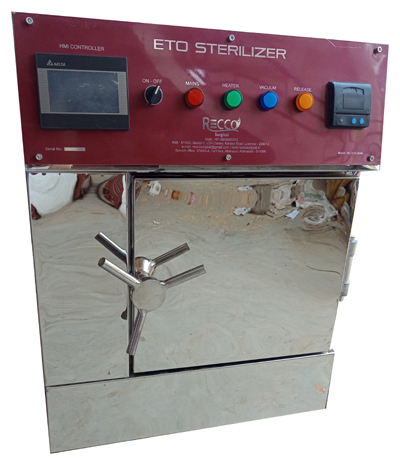

Table Top Ethylene Oxide Gas Sterilizer Model Number: RECC-004A

RECCO SURGICAL Table Top Ethylene Oxide Gas Sterilizers (ETO) are specifically designed to perform sterilization of temperature sensitive products.Our Sterilizercan be used both in Pharmaceutical and Parapharmaceutical industries and even in a wide range of medical and laboratory applications.

MAIN APPLICATIONS

Syringes, Catheters, Cartridges for dialysis

Plastic Articles

Bandages, Sutures

Use by Laparoscopy Surgeon, Ophthal Surgeon

Use by Ortho Surgeon, Pediatric Surgeon

RECCO SURGICAL manufacturing Ethylene Oxide Gas Sterilizers (ETO) as per the norms of the international standards and use branded parts and components. Material use in manufacturing only Stainless Steal(JINDAL) Mate and Mirror Finish both. Grade Use Only SS316 and SS304.

RECCO Ethylene Oxide Gas Sterilizers Chamber tested under -600PSI Vacuum tested.

FEATURES & BENEFITS:

Fully automatic One touch operated machine
Thermal printer
Inbuilt vacuum pump
Inbuilt Air Compressor
Rectangular chamber
Stainless steel interior and exterior
Standard temperature 35°C to 65°C
Working pressure is -500 PSI.
Silicon jointless rubber door gasket
Manual/Automatic door lock
Automatic Ethylene Cartridges puncher system.
ISI marked flange / immersion heating elements

Small ETO Sterilizer(e.g 25-150Ltr) has been specially designed for Super Specialty and Multi-Specialty Hospitals capable for sterilizing all major medical devices.

TECHNICAL SPECIFICATIONS

Model	RECC-004A
Design	Rectangular Horizontal Type
Construction	Complete Stainless Steal
Inner Chamber	Made by SS 316
Outer and All Piping	Made by SS 304
Automation Hardware	PLC/HMI
Chamber Operating Pressure	Negative pressure cycle
Chamber Testing pressure	1.0 Kg/cm2
Operating Temperature	Maximum: 65°C (chamber)
Single Door	SS 304
Door Locking	Manual/Automatic Pressure Locking system
Gasket	Jointless Silicon Gasket
Finishing	Mirror finished inner and external surface Mate/Mirror.
Insulation	Glass wool Fiber 50mm
Sterilization Period	6-7 Hours
Heating	Heaters on all sides of the Chamber for uniform heating throughout the load.
Temperature Sensor	For accurate measuring and controlling of Temp. in the chamber
Pressure Transmitter	For measuring and controlling the pressure-vacuum that the load is subjected to during removal and charging of Gas.
All Valves for Automation	JANATICS Pneumatic Solenoid valves.
Sensor	PT100
Heater	ESCORT
COMPRESSOR	Oil Free
Vacuum Pump	Inbuilt
Standard Accessories	SS 304 Loading Basket x 1pc Sealing Machine x 1pcs ETO Paper Roll 20CM x 1pc ETO Cartridges x 10pc Air Blow Gun x 1pc
Power Supply	220 Volts (Single Phase)

SIZE OF ETO STERILIZER

SIZE IN MM W x H x L	SIZE IN INCHES W x H x L	CAPACITY IN LTR	VOLUMETRIC CAPACITY IN FT
310x310x310MM	12" x 12" x 12"	25LTR	1
310x310x600MM	12" x 12" x 24"	57LTR	2
310x310x900MM	12" x 12" x 36"	86LTR	3
310x310x1200MM	12" x 12" x 48"	115LTR	4
310x310x1350MM	12" x 12" x 54"	130LTR	4.5
310x310x1500MM	12" x 12" x 60"	145LTR	5
